ProMax

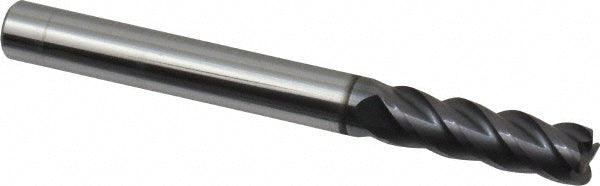

1/4" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 129-41614

MFR# 129-41614Series 129

$27.45List $34.35 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The ProMax 129-41614 is a 1/4 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series 129.

Specifications

CentercuttingNo

Coating finishAlTiN

Corner radius0.0300

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Length of cut in3/4

Length typeRegular

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.000000 to -0.002000 in

Number of flutes4

Overall length in2-1/2

Shank diameter in1/4

Single or double endSingle

Variable indexNo
