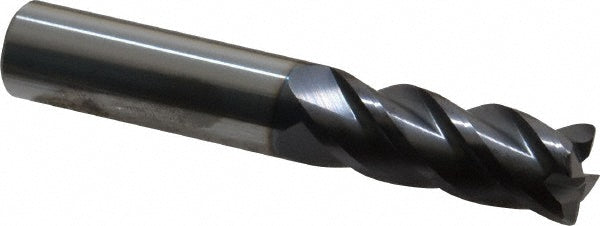

1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 129-43214

ProMax

1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 129-43214

MFR# 129-43214Series 129

$75.90List $95.01 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 129-43214 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 1 length of cut, 3 overall length. Series 129.

Specifications

CentercuttingNo
Coating finishAlTiN
Corner radius0.0300
Corner radius tolerance+0.00100 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1
Length typeRegular
Material gradeMicrograin
Maximum helix angle40
Mill diameter in1/2
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes4
Overall length in3
Shank diameter in1/2
Single or double endSingle
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
