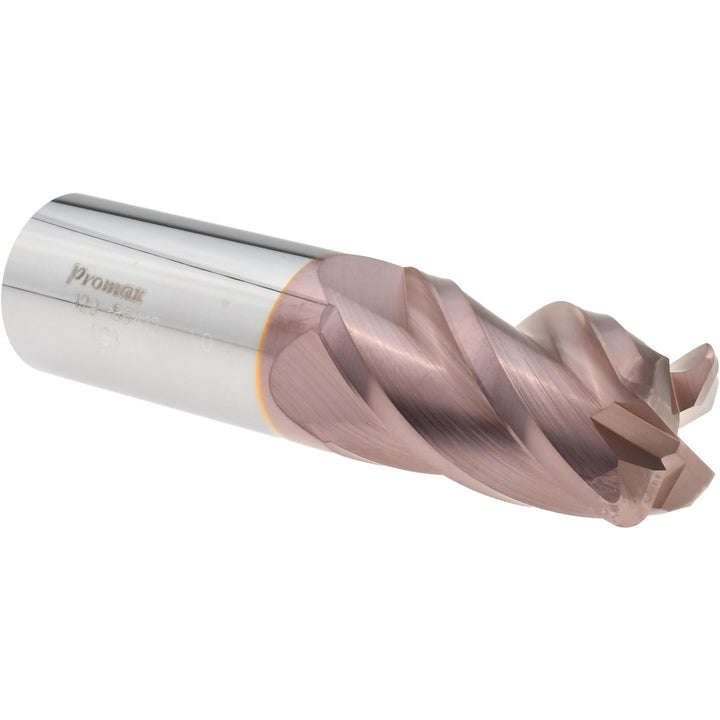

1" 4-Flute Solid Carbide Corner Radius End Mill, TiCN - ProMax 129-86412

ProMax

1" 4-Flute Solid Carbide Corner Radius End Mill, TiCN - ProMax 129-86412

MFR# 129-86412Series 129

$323.26List $398.16 Save 18%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 129-86412 is a 1 4-flute Solid Carbide (Micrograin) corner radius end mill with a TiCN finish for longer tool life. 1-3/4 length of cut, 4 overall length. Series 129.

Specifications

CentercuttingNo
Coating finishTiCN
Corner radius0.1250
Corner radius tolerance+0.00100 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-3/4
Length typeRegular
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance+0.000000/-0.002000 in
Number of flutes4
Overall length in4
Shank diameter in1
Single or double endSingle
Variable indexNo
