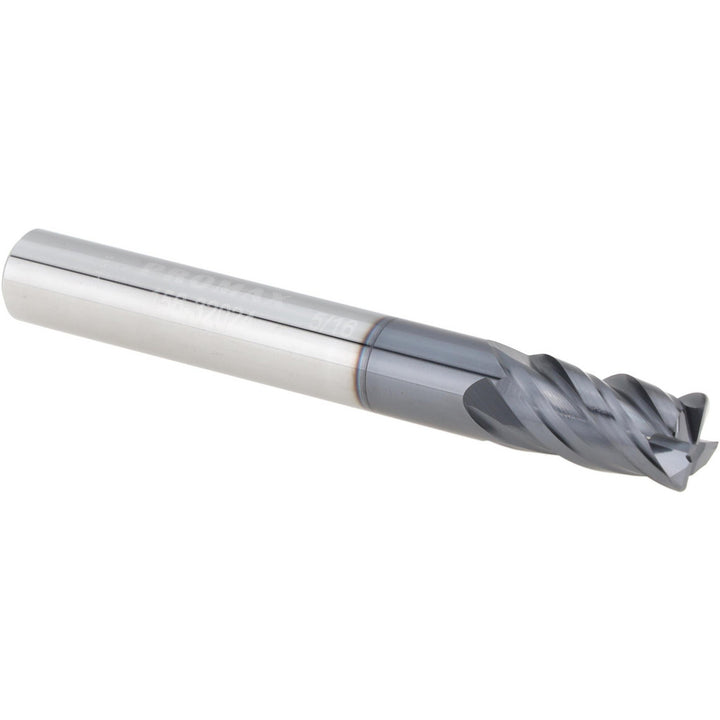

5/16" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 156-32024

MFR# 156-32024Series 156

$57.03List $71.39 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The ProMax 156-32024 is a 5/16 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 1/2 length of cut, 2-1/2 overall length. Series 156.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0200

Corner radius tolerance+0.00000 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1/2

Length typeShort

Material applicationSteel; Stainless Steel; Superalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in5/16

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes4

Overall length in2-1/2

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Shank diameter in5/16

Shank diameter tolerance-0.0001/-0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
