5/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 156-32414

ProMax

5/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 156-32414

MFR# 156-32414Series 156

$72.09List $88.67 Save 18%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

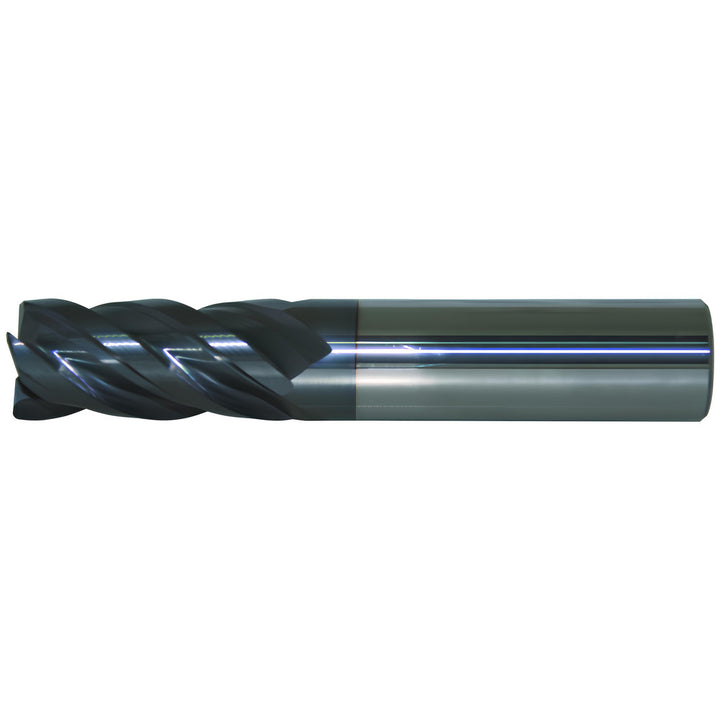

The ProMax 156-32414 is a 5/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 7/8 length of cut, 2-1/2 overall length. Series 156.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0200
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix styleHigh
Length of cut in7/8
Length typeShort
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter tolerance-0.0020 to 0.0000 in
Number of flutes4
Overall length in2-1/2
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Shank diameter in3/8
Shank diameter tolerance-0.0001 to -0.0040 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
