ProMax

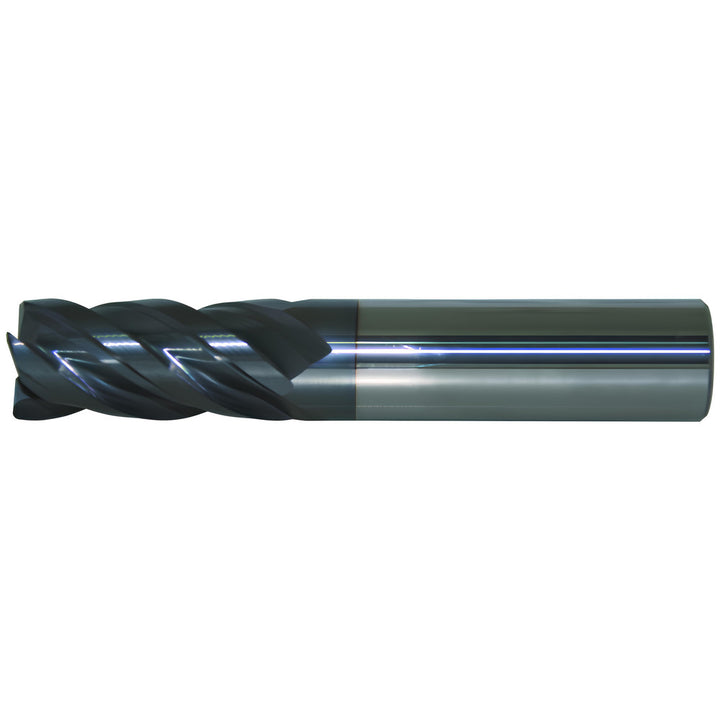

7/16" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 156-32814

Name: 7/16" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 156-32814
Brand: ProMax
SKU: 156-32814
Price: 82.91 USD
Availability: InStock

MFR# 156-32814Series 156

$82.91List $101.98 Save 18%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The ProMax 156-32814 is a 7/16 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 1 length of cut, 2-3/4 overall length. Series 156.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0200

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleHigh

Length of cut in1

Length typeStandard

Material applicationSteel; Stainless Steel; Superalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in7/16

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes4

Overall length in2-3/4

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Shank diameter in7/16

Shank diameter tolerance-0.0001 to -0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
