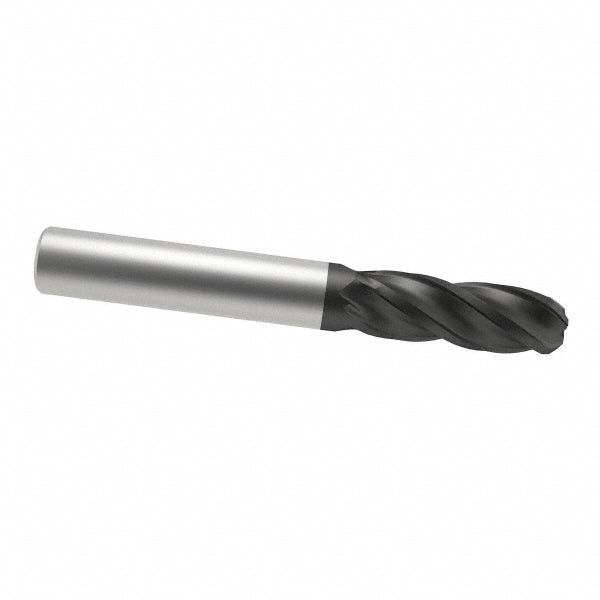

3/8in" 4-Flute Solid Carbide Ball End Mill, AlTiN - ProMax 157-02414

ProMax

3/8in" 4-Flute Solid Carbide Ball End Mill, AlTiN - ProMax 157-02414

MFR# 157-02414Series 157

$83.98List $105.84 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 157-02414 is a 3/8in 4-flute Solid Carbide (Submicron) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 7/8in length of cut, 2-1/2in overall length. Series 157.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Helix styleHigh
Length of cut in7/8in
Length typeStandard
Manufacturers catalog number157-02414
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.1875
Number of flutes4
Overall length in2-1/2in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length0.8750
Shank diameter in3/8in
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
