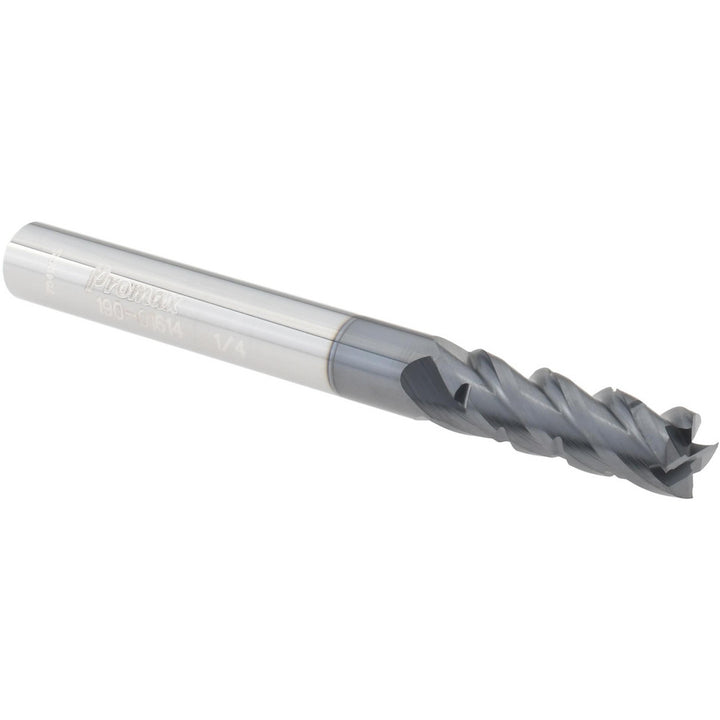

0.2500" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 190-01614

ProMax

0.2500" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 190-01614

MFR# 190-01614Series 190

$50.21List $63.28 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 190-01614 is a 0.2500 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 3/4 length of cut. Series 190.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSquare
Extended reachNo
Flute directionRight Hand
Helix angle40
Length of cut in3/4
Length typeRegular
Material gradeMicrograin
Maximum helix angle40
Mill diameter0.2500
Mill diameter frac in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
