ProMax

0.7500" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 190-04814

MFR# 190-04814Series 190

$220.17List $282.38 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

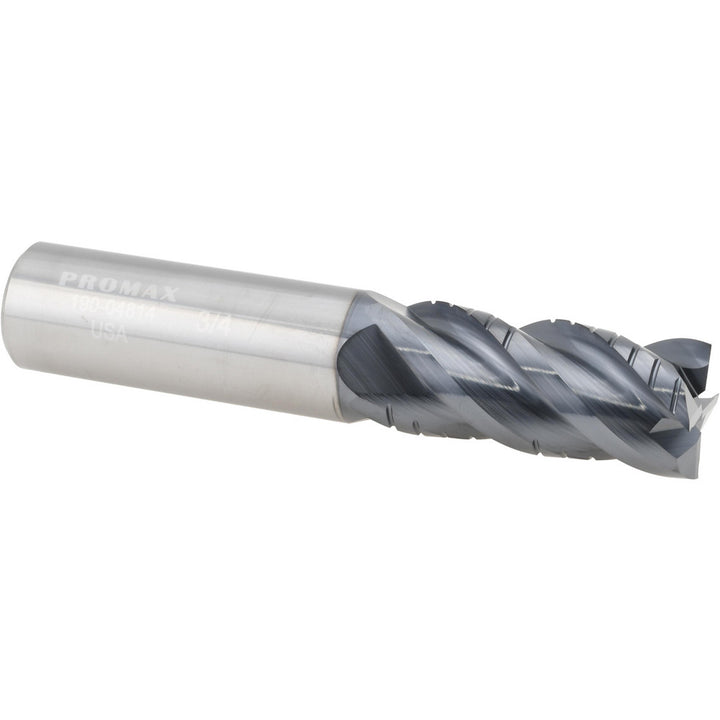

The ProMax 190-04814 is a 0.7500 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1-5/8 length of cut. Series 190.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

End typeSquare

Extended reachNo

Flute directionRight Hand

Helix angle40

Length of cut in1-5/8

Length typeRegular

Material gradeMicrograin

Maximum helix angle40

Mill diameter0.7500

Mill diameter frac in3/4

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Shank diameter in3/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeWeldon Flat

Single or double endSingle

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
