ProMax

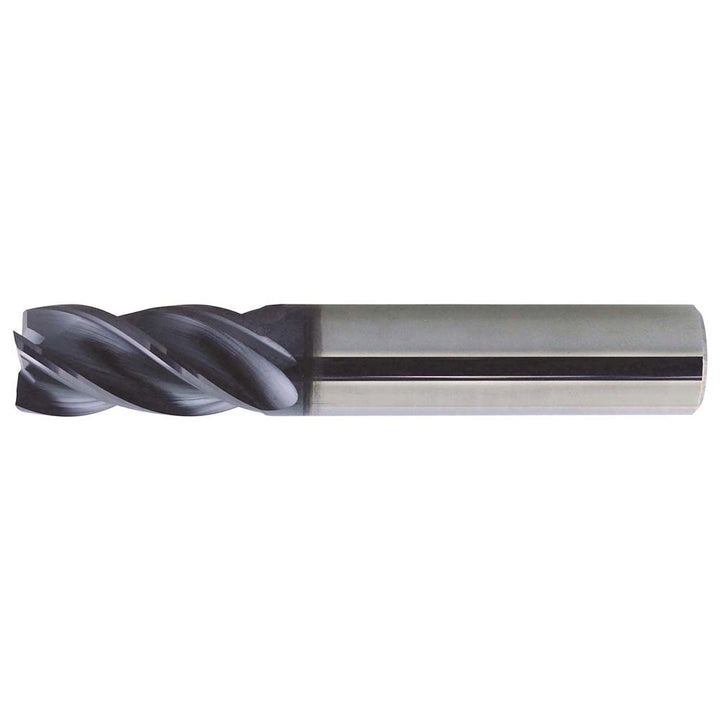

1/8" 4-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US007001
MFR# US007001Series US007
$26.45List $33.33
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingPowerLayer
Description
The ProMax US007001 is a 1/8 4-flute Solid Carbide (Micrograin) square end mill with a PowerLayer finish for longer tool life. 1/4 length of cut, 1-1/2 overall length. Series US007.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishPowerLayer
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35/38
Length of cut in1/4
Length of cut range0.2000 - 0.3000
Length typeStandard
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
