ProMax

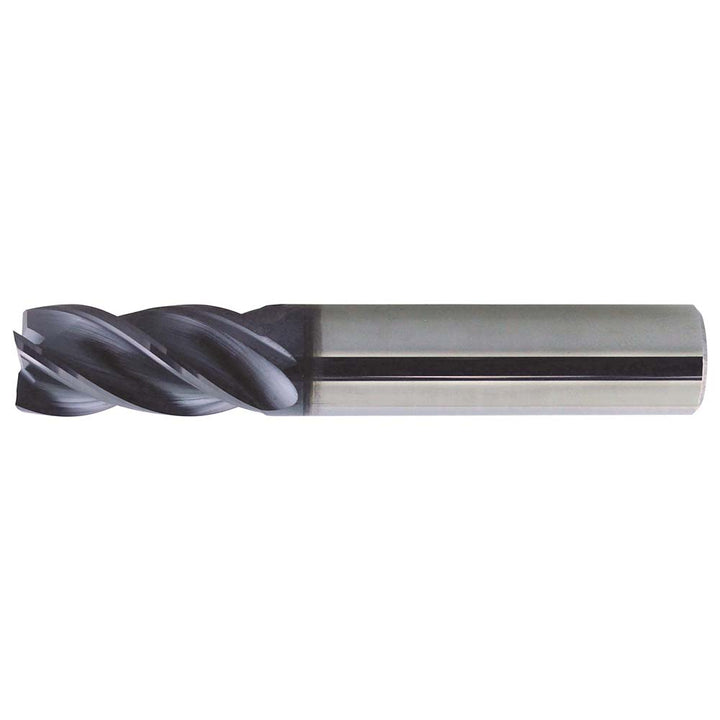

3/8" 4-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US007086

MFR# US007086Series US007

$66.57List $85.38 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingPowerLayer

Description

The ProMax US007086 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill with a PowerLayer finish for longer tool life. 1-1/4 length of cut, 3 overall length. Series US007.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35/38

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeStandard

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in3

Shank diameter in3/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes
