ProMax

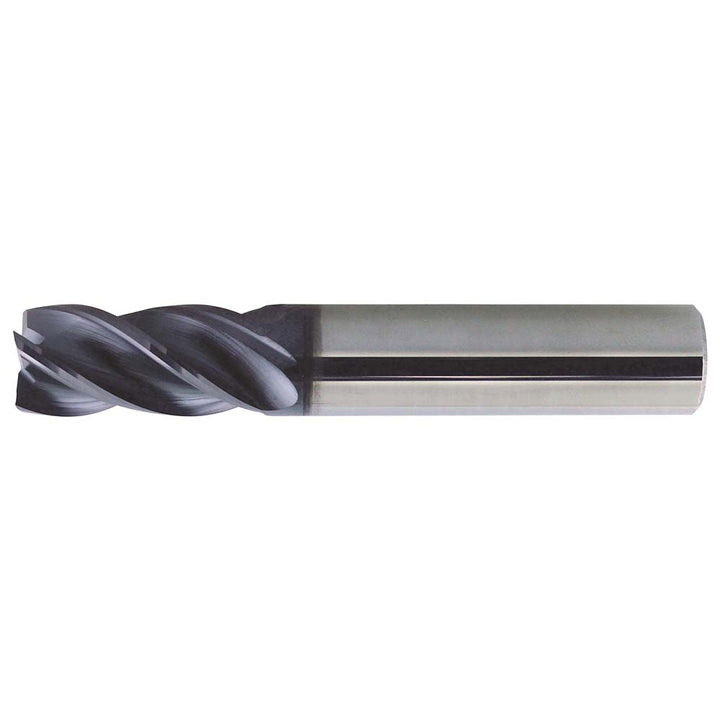

1/2" 4-Flute Solid Carbide Square End Mill - ProMax US007117
MFR# US007117Series US007
$91.26List $115.02
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
Description
The ProMax US007117 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 3 overall length. Series US007.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35/38
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeStandard
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
