ProMax

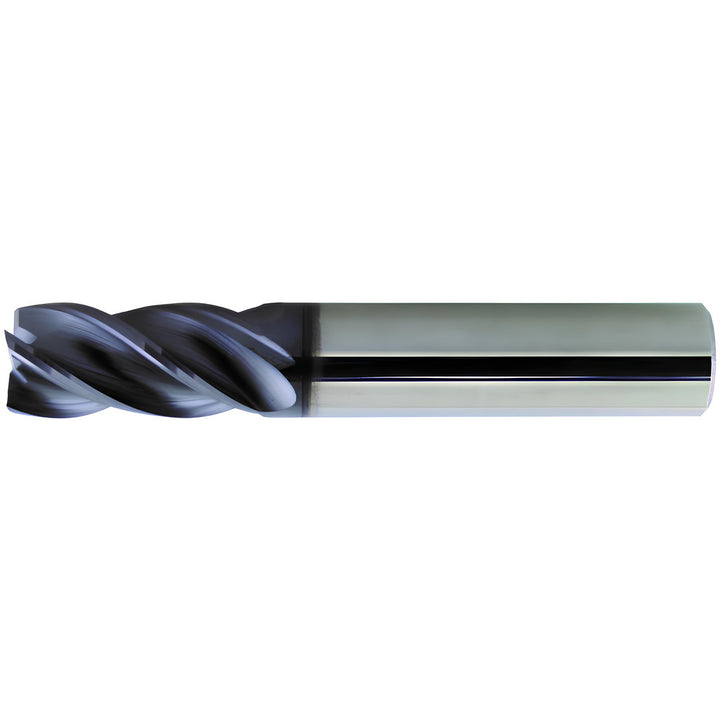

1/2" 4-Flute Solid Carbide Corner Radius End Mill, PowerLayer - ProMax US007119
MFR# US007119Series US007
$96.37List $118.70
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingPowerLayer
Description
The ProMax US007119 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a PowerLayer finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, non-ferrous metal. 1 length of cut, 3 overall length. Series US007.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishPowerLayer
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix styleVariable
Length of cut in1
Length typeShort
Manufacturers catalog numberUS007119
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance-0.0020 to 0.0000 in
Number of flutes4
Overall length in3
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal
Shank diameter in1/2
Shank diameter tolerance-0.0001 to -0.0040 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
