ProMax

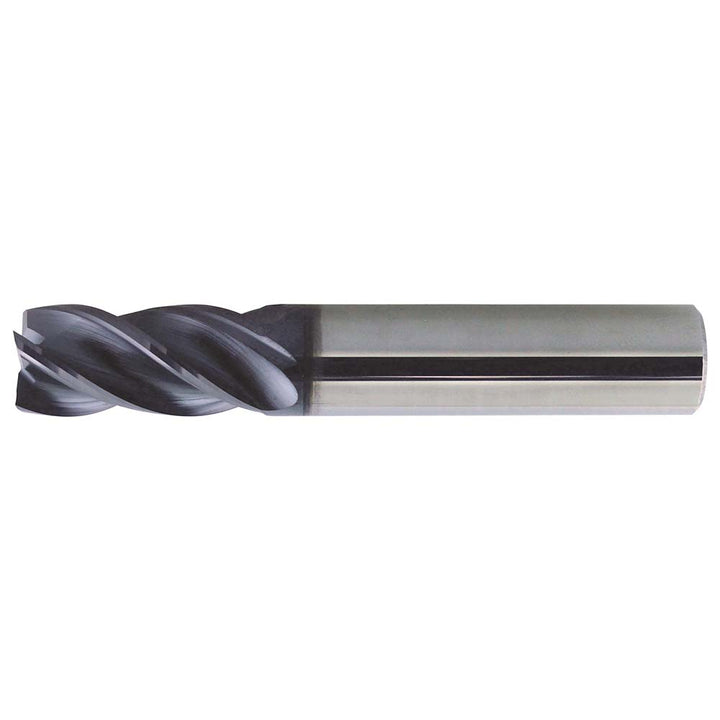

1/2" 4-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US007141

MFR# US007141Series US007

$101.97List $130.78 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingPowerLayer

Description

The ProMax US007141 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill with a PowerLayer finish for longer tool life. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 1-5/8 length of cut, 4 overall length. Series US007.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Coating finish familyPowerLayer

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35-38

Length of cut in1-5/8

Length of cut range1.5000 - 2.0000

Length typeStandard

Material gradeMicrograin

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes4

Overall length in4

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy

Shank diameter in1/2

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
