ProMax

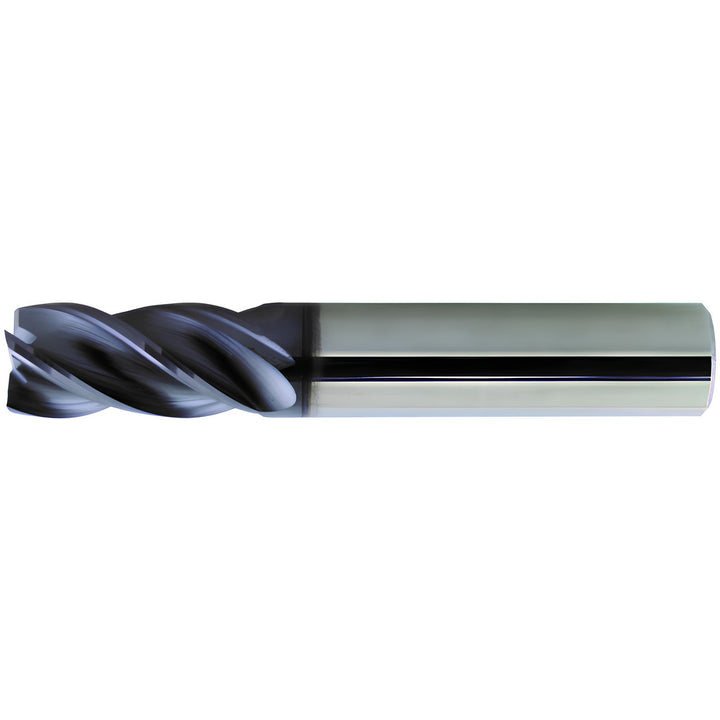

1/2" 4-Flute Solid Carbide Corner Radius End Mill, PowerLayer - ProMax US007142

MFR# US007142Series US007

$86.38List $99.15 Save 12%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingPowerLayer

Description

The ProMax US007142 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a PowerLayer finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, non-ferrous metal. 1-5/8 length of cut, 4 overall length. Series US007.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Coolant throughNo

Corner radius0.0200

Corner radius tolerance+/-0.0010

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut in1-5/8

Length typeStandard

Manufacturers catalog numberUS007142

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes4

Overall length in4

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal

Shank diameter in1/2

Shank diameter tolerance-0.0001/-0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
