3/4" 4-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US007225

MFR# US007225Series US007

$212.85List $272.98 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingPowerLayer

Description

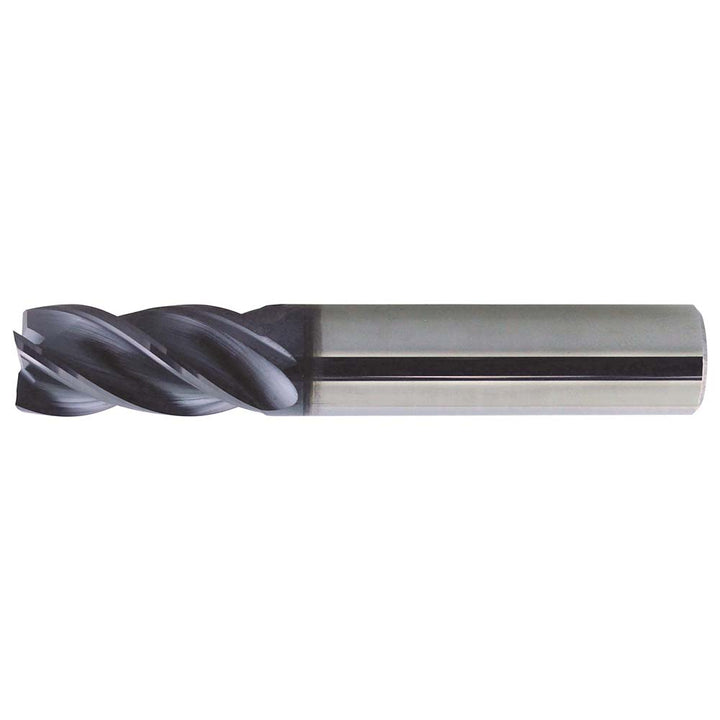

The ProMax US007225 is a 3/4 4-flute Solid Carbide (Micrograin) square end mill with a PowerLayer finish for longer tool life. 1-5/8 length of cut, 4 overall length. Series US007.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35/38

Length of cut in1-5/8

Length of cut range1.5000 - 2.0000

Length typeStandard

Material gradeMicrograin

Mill diameter in3/4

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in4

Shank diameter in3/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes
