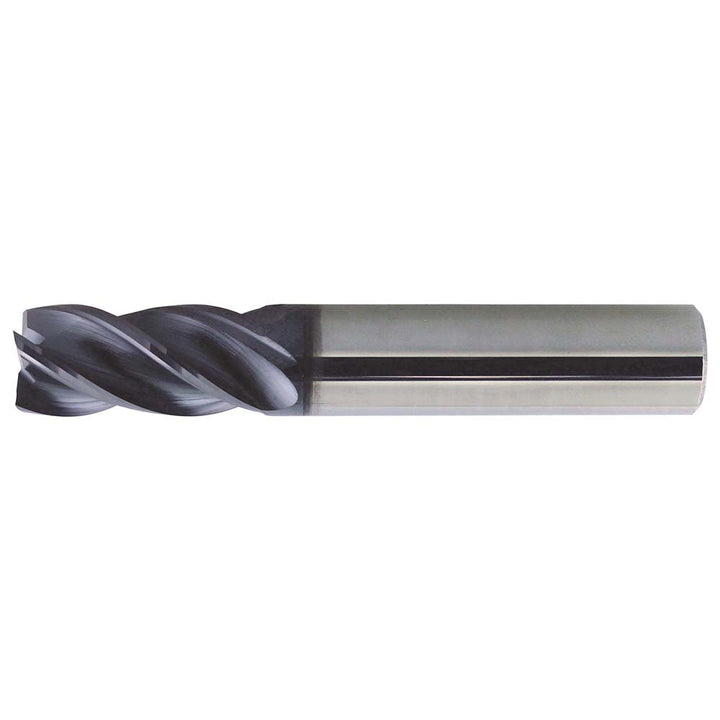

3/4" 4-Flute Solid Carbide Square End Mill - ProMax US007260

ProMax

3/4" 4-Flute Solid Carbide Square End Mill - ProMax US007260

MFR# US007260Series US007

$211.85List $271.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide

Description

The ProMax US007260 is a 3/4 4-flute Solid Carbide (Micrograin) square end mill. 3-1/4 length of cut, 6 overall length. Series US007.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35/38
Length of cut in3-1/4
Length of cut range2.0000+
Length typeStandard
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in6
Shank diameter in3/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
