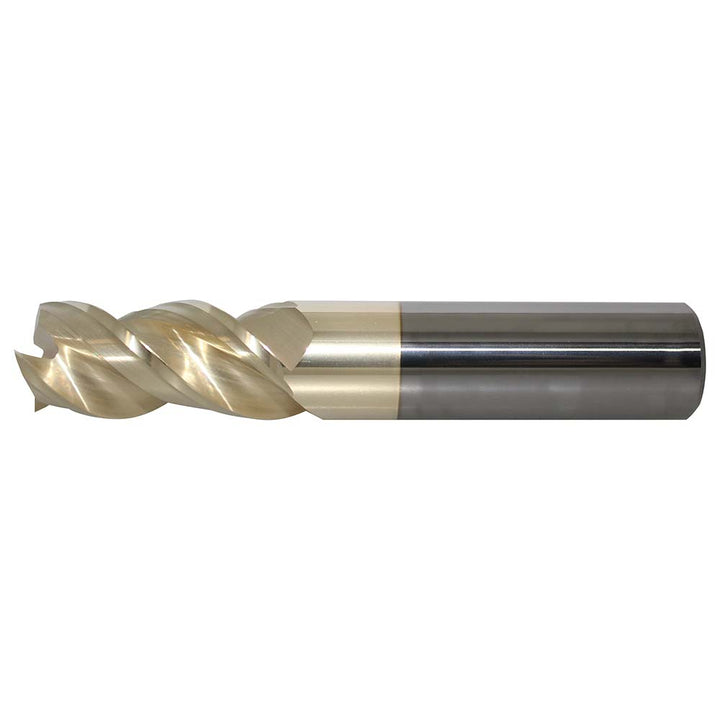

3/8" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax US362082

ProMax

3/8" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax US362082

MFR# US362082Series US362

$54.52List $69.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingZrN

Description

The ProMax US362082 is a 3/8 3-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-1/2 overall length. Series US362.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle46/48
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeStandard
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
