ProMax

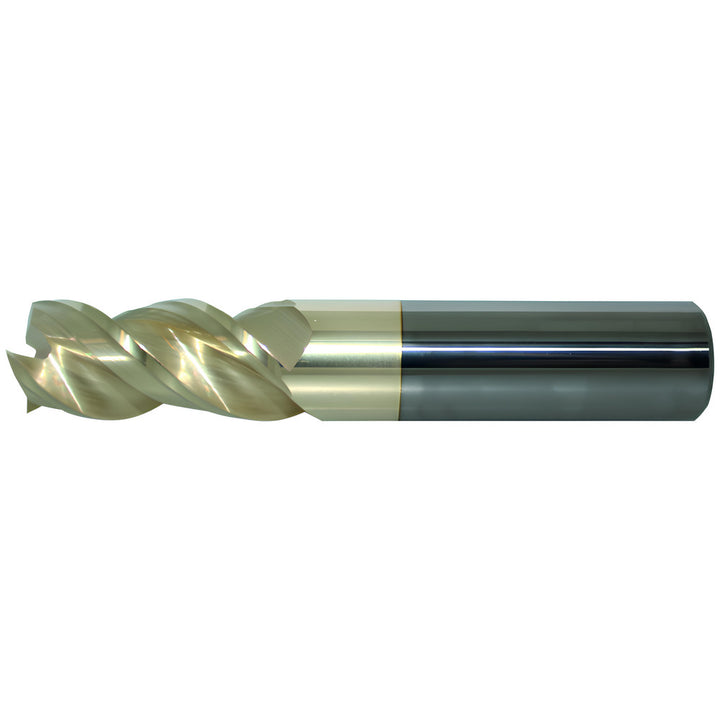

3/4" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - ProMax US362186

MFR# US362186Series US362

$99.59List $124.66 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The ProMax US362186 is a 3/4 3-flute Solid Carbide (Micrograin) corner radius end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 1-5/8 length of cut, 4 overall length. Series US362.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZrN

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleVariable

Length of cut in1-5/8

Length typeStandard

Manufacturers catalog numberUS362186

Material applicationNon-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in3/4

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes3

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/2

Shank diameter tolerance-0.0001 to -0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
