ProMax

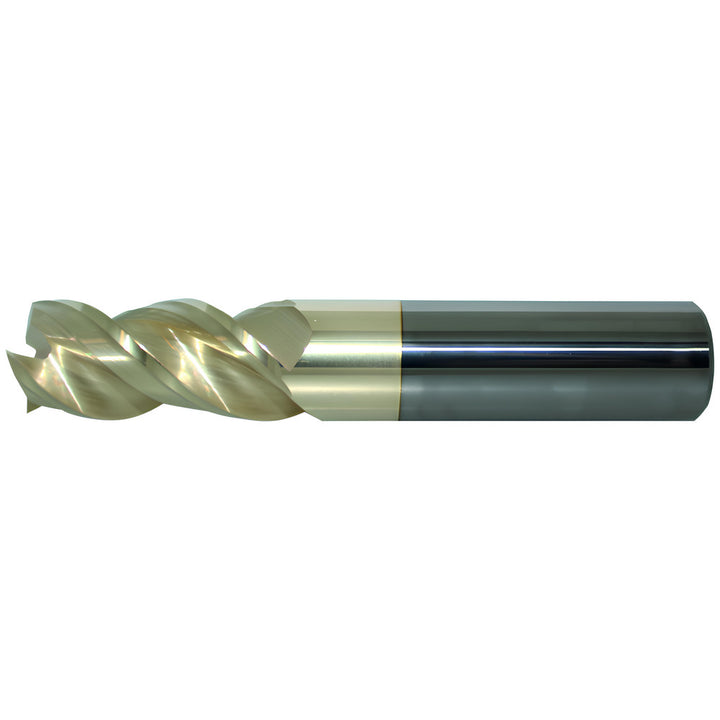

5/8" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - ProMax US362196

MFR# US362196Series US362

$108.39List $135.86 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The ProMax US362196 is a 5/8 3-flute Solid Carbide (Micrograin) corner radius end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 2 length of cut, 4 overall length. Series US362.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZrN

Coolant throughNo

Corner radius0.0150

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleVariable

Length of cut in2

Length typeLong

Manufacturers catalog numberUS362196

Material applicationNon-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in5/8

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes3

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/2

Shank diameter tolerance-0.0001 to -0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
