ProMax
5/8" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax US362230
MFR# US362230Series US362
$122.54List $154.44
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
CoatingZrN
Description

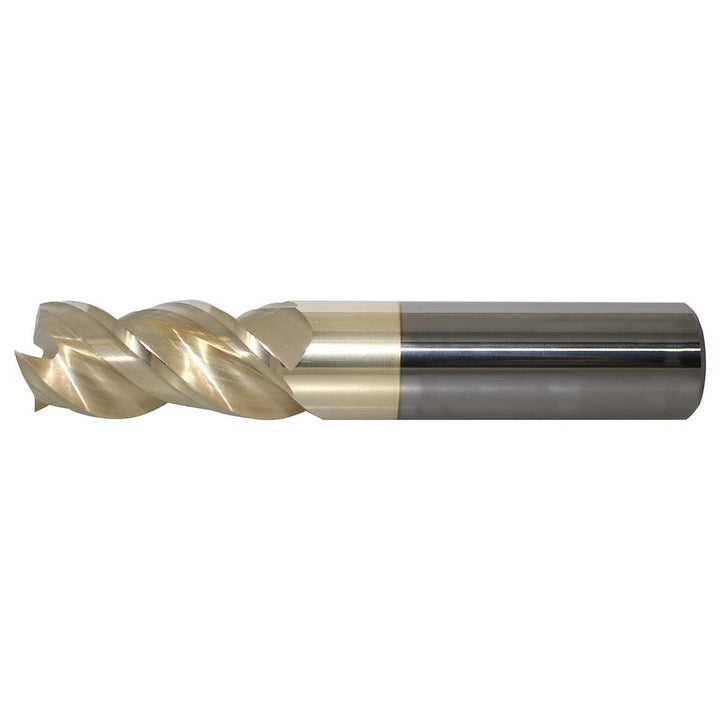

The ProMax US362230 is a 5/8 3-flute Solid Carbide (Micrograin) square end mill with a ZrN finish for longer tool life. 3/4 length of cut, 3 overall length. Series US362.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle46/48
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeStandard
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in3
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
