ProMax

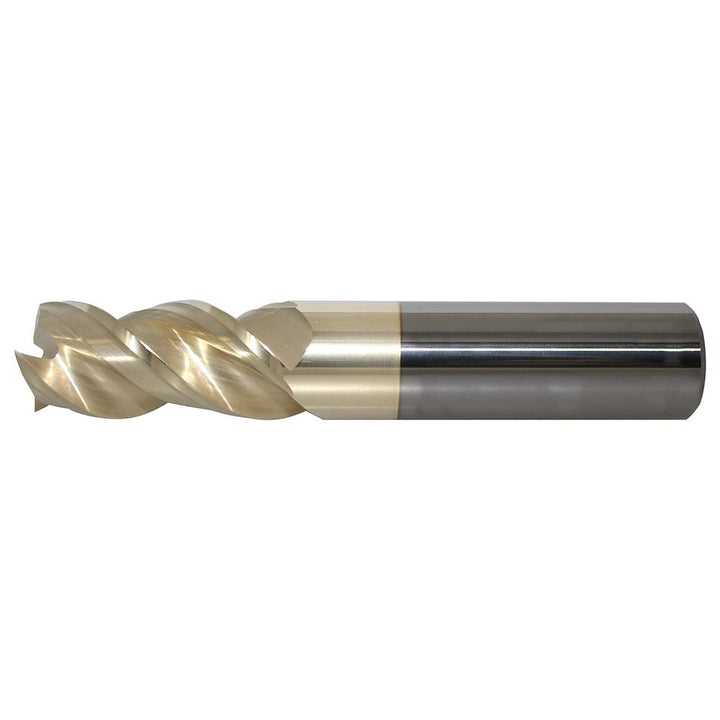

3/4" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax US362322
MFR# US362322Series US362
$208.82List $267.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The ProMax US362322 is a 3/4 3-flute Solid Carbide (Micrograin) square end mill. 2-1/4 length of cut, 5 overall length. Series US362.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle46/48
Length of cut in2-1/4
Length of cut range2.0000+
Length typeStandard
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in5
Shank diameter in3/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
