ProMax

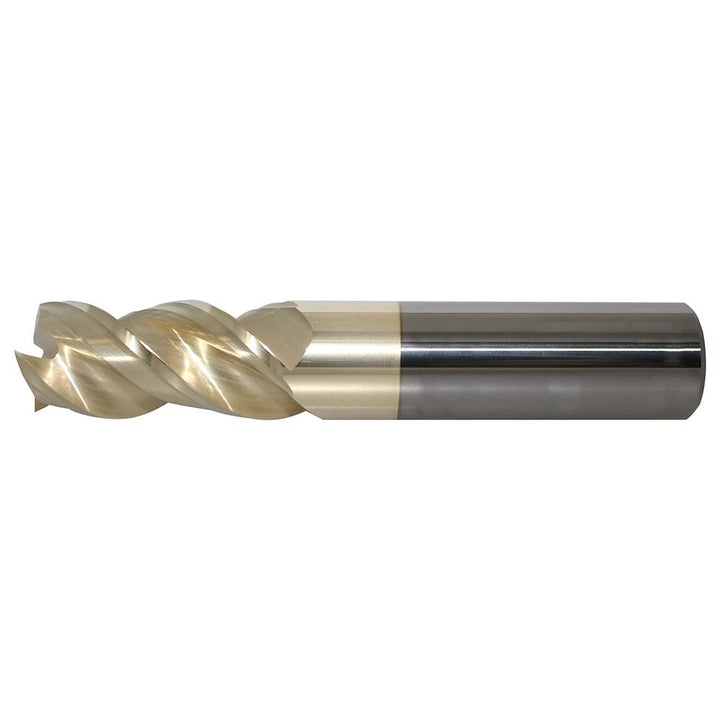

1" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax US362364

MFR# US362364Series US362

$244.63List $313.75 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The ProMax US362364 is a 1 3-flute Solid Carbide (Micrograin) square end mill with a ZrN finish for longer tool life. 1-1/4 length of cut, 4 overall length. Series US362.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle46/48

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeStandard

Material gradeMicrograin

Mill diameter in1

Mill diameter tolerance+0.000/-0.002 in

Number of flutes3

Overall length in4

Shank diameter in1

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes
