ProMax

1" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - ProMax US362402

MFR# US362402Series US362

$355.59List $445.72 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

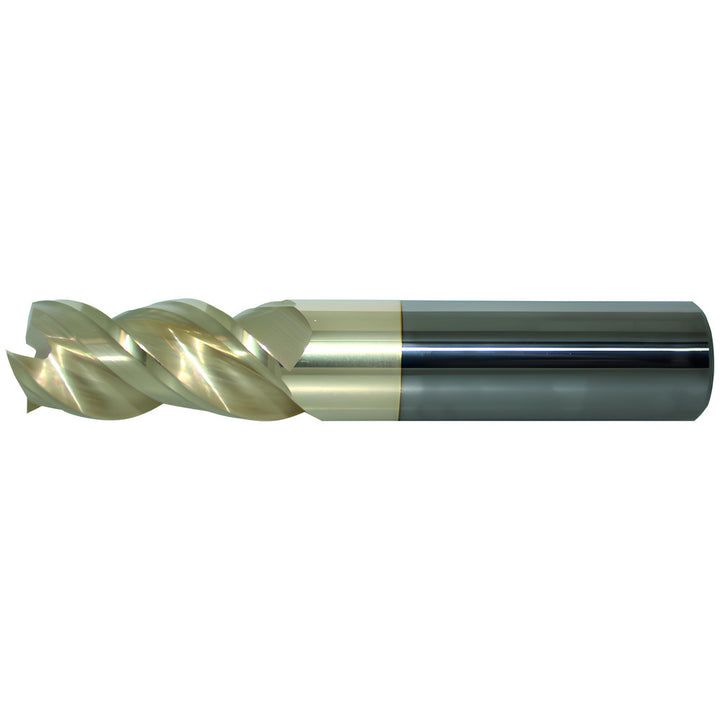

The ProMax US362402 is a 1 3-flute Solid Carbide (Micrograin) corner radius end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 3-1/4 length of cut, 6 overall length. Series US362.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZrN

Coolant throughNo

Corner radius0.1900

Corner radius tolerance-0.0015 to 0.0015 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleVariable

Length of cut in3-1/4

Length typeLong

Manufacturers catalog numberUS362402

Material applicationNon-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in1

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes3

Overall length in6

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1

Shank diameter tolerance-0.0001 to -0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
