ProMax

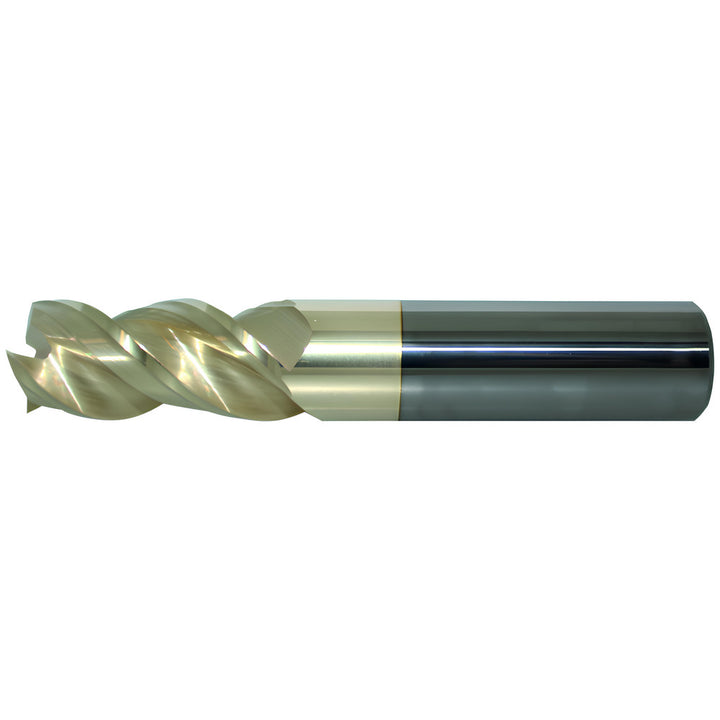

5/8" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - ProMax US362404

MFR# US362404Series US362

$355.59List $445.72 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The ProMax US362404 is a 5/8 3-flute Solid Carbide (Micrograin) corner radius end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 3-1/4 length of cut, 6 overall length. Series US362.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZrN

Coolant throughNo

Corner radius0.2500

Corner radius tolerance-0.0015 to 0.0015 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleVariable

Length of cut in3-1/4

Length typeExtra Long

Manufacturers catalog numberUS362404

Material applicationNon-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in5/8

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes3

Overall length in6

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1

Shank diameter tolerance-0.0001 to -0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
