1/4" 5-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US556056

ProMax

1/4" 5-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US556056

MFR# US556056Series US556

$35.90List $42.82 Save 16%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide
CoatingPowerLayer

Description

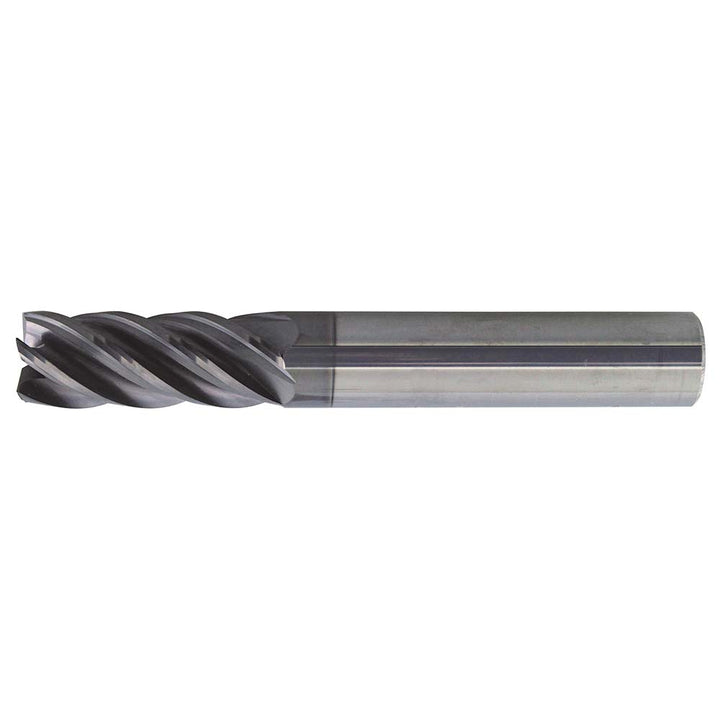

The ProMax US556056 is a 1/4 5-flute Solid Carbide (Micrograin) square end mill with a PowerLayer finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series US556.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishPowerLayer
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeStandard
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
