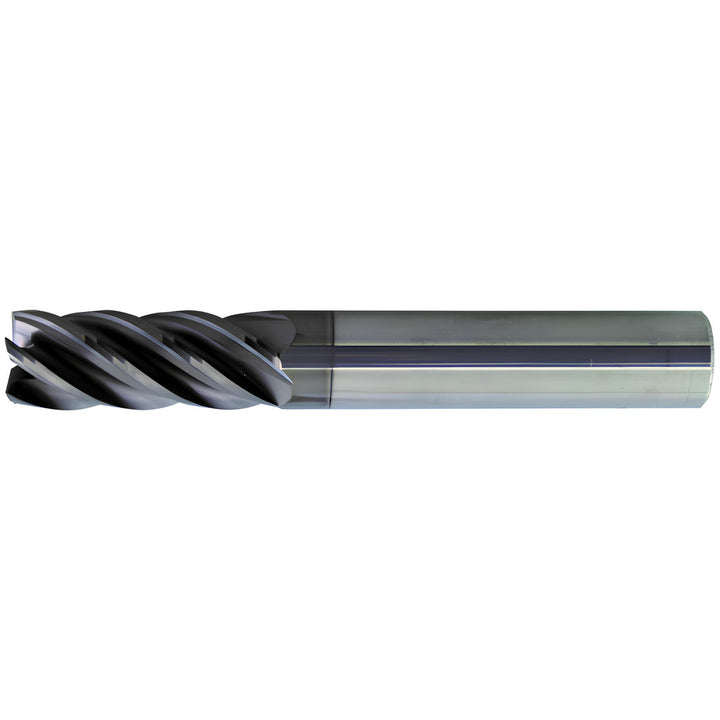

5/8" 5-Flute Solid Carbide Corner Radius End Mill, PowerLayer - ProMax US556086

MFR# US556086Series US556

$75.07List $94.10 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingPowerLayer

Description

The ProMax US556086 is a 5/8 5-flute Solid Carbide (Micrograin) corner radius end mill with a PowerLayer finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1 length of cut, 3 overall length. Series US556.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Coolant throughNo

Corner radius0.0150

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleHigh

Length of cut in1

Length typeShort

Manufacturers catalog numberUS556086

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes5

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Shank diameter in3/8

Shank diameter tolerance-0.0001 to -0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
