ProMax

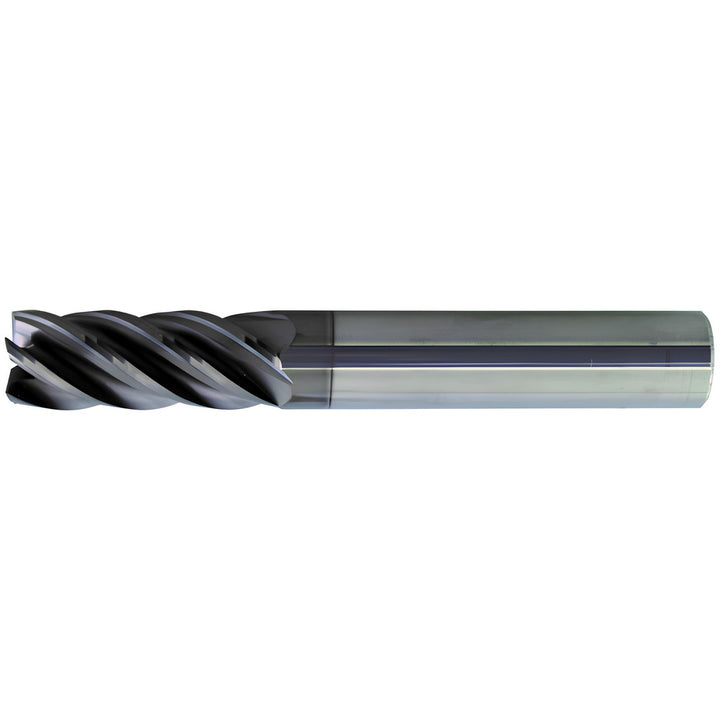

3/4" 5-Flute Solid Carbide Corner Radius End Mill, PowerLayer - ProMax US556099

MFR# US556099Series US556

$90.31List $113.04 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingPowerLayer

Description

The ProMax US556099 is a 3/4 5-flute Solid Carbide (Micrograin) corner radius end mill with a PowerLayer finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/2 length of cut, 3-1/2 overall length. Series US556.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Coolant throughNo

Corner radius0.0900

Corner radius tolerance-0.0015 to 0.0015 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleHigh

Length of cut in1-1/2

Length typeShort

Manufacturers catalog numberUS556099

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes5

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Shank diameter in3/8

Shank diameter tolerance-0.0001 to -0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
