ProMax
1/2" 5-Flute Solid Carbide Square End Mill - ProMax US556120
MFR# US556120Series US556
$59.94List $72.76
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
Description

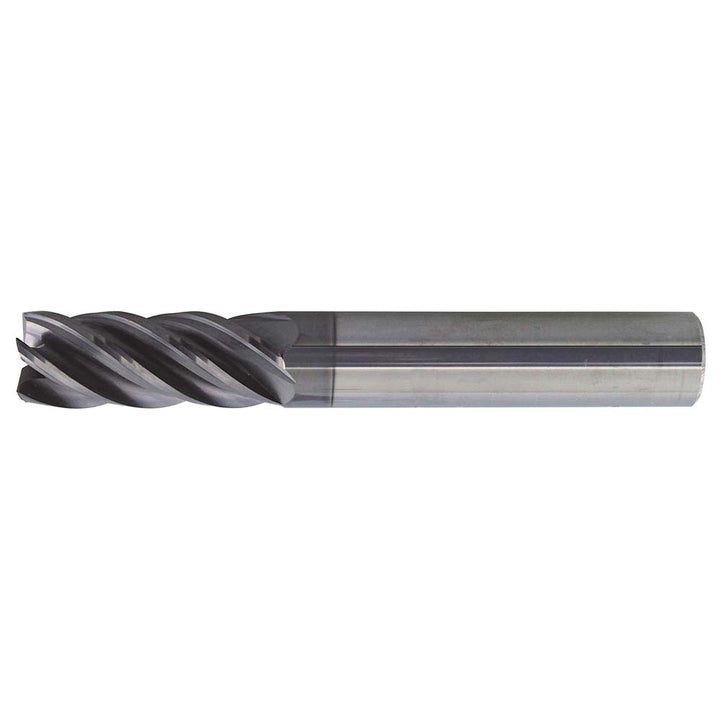

The ProMax US556120 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series US556.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStandard
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in2-1/2
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
