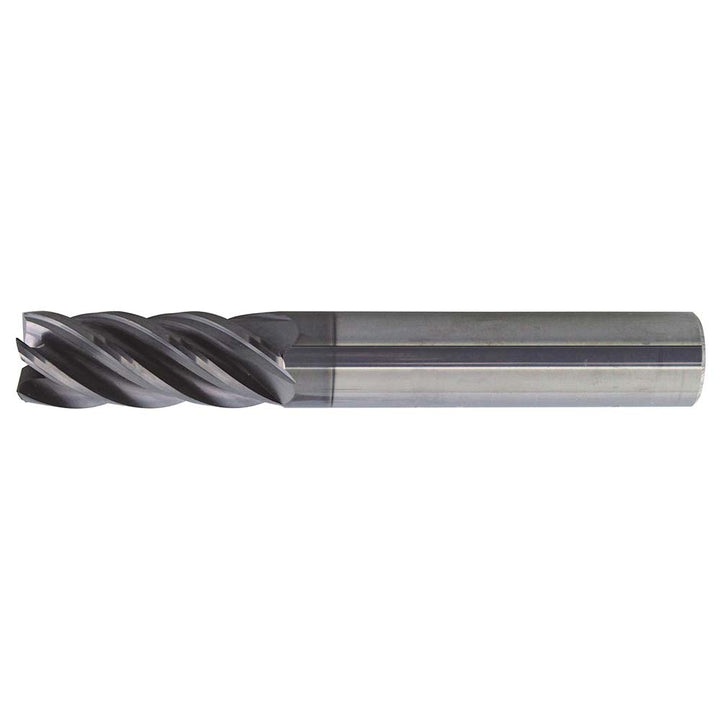

1/2" 5-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US556156

MFR# US556156Series US556

$108.24List $138.82 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes5

MaterialSolid Carbide

CoatingPowerLayer

Description

The ProMax US556156 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a PowerLayer finish for longer tool life. 2 length of cut, 4 overall length. Series US556.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in2

Length of cut range2.0000+

Length typeStandard

Material gradeMicrograin

Mill diameter in1/2

Mill diameter tolerance+0.000/-0.002 in

Number of flutes5

Overall length in4

Shank diameter in1/2

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
