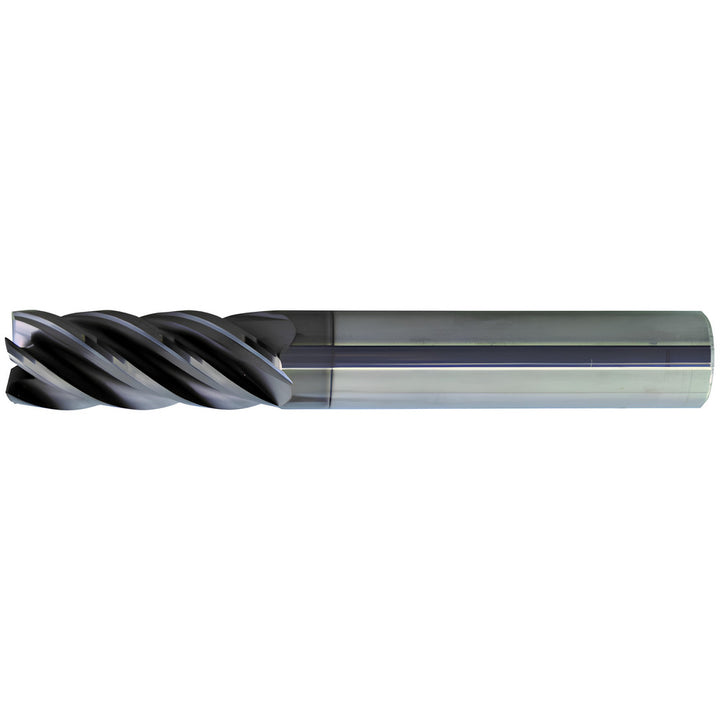

1/2" 5-Flute Solid Carbide Corner Radius End Mill, PowerLayer - ProMax US556276

ProMax

1/2" 5-Flute Solid Carbide Corner Radius End Mill, PowerLayer - ProMax US556276

MFR# US556276Series US556

$276.87List $347.06 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingPowerLayer

Description

The ProMax US556276 is a 1/2 5-flute Solid Carbide (Micrograin) corner radius end mill with a PowerLayer finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 3-1/4 length of cut, 6 overall length. Series US556.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishPowerLayer
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix styleHigh
Length of cut in3-1/4
Length typeExtra Long
Manufacturers catalog numberUS556276
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance-0.0020 to 0.0000 in
Number of flutes5
Overall length in6
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter in3/4
Shank diameter tolerance-0.0001 to -0.0040 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
