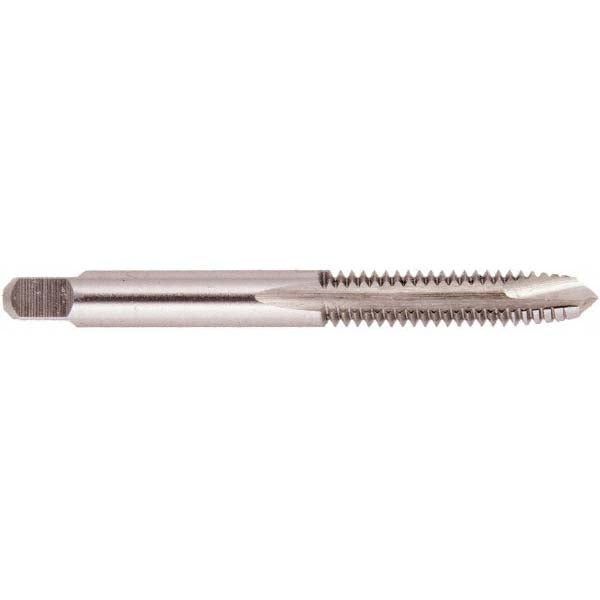

5/16-18 UNC High-Speed Steel Tap - Regal Cutting Tools 008391AS

Regal Cutting Tools

5/16-18 UNC High-Speed Steel Tap - Regal Cutting Tools 008391AS

MFR# 008391AS

$10.78List $13.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
Thread size5/16-18

Description

The Regal Cutting Tools 008391AS is a 5/16-18 UNC High-Speed Steel tap. 2 flutes.

Specifications

ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Aluminum; Cast (Sand) Aluminum; Cast Iron; Die Cast Aluminum; Free-Machining Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Nickel Alloy; Precipitation-Hardened Stainless Steel; Stainless Steel; Wrought Aluminum
Number of flutes2
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Threads per inch18
Thread directionRight Hand
Thread length in1-1/8
Thread limitH3
Thread size in5/16-18
Thread standardUNC
