Regal Cutting Tools

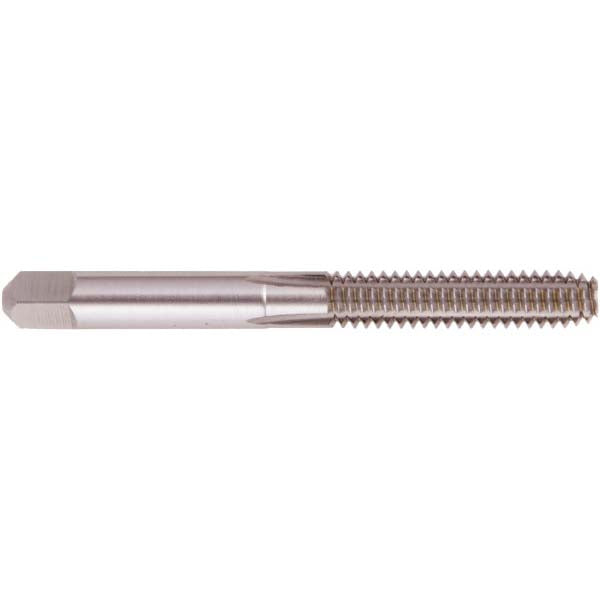

7/16-14 UNC High-Speed Steel Tap - Regal Cutting Tools 010397AS
MFR# 010397ASSeries Met-Flo
$30.57List $39.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size7/16-14
Description
The Regal Cutting Tools 010397AS is a 7/16-14 UNC High-Speed Steel tap.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1-2P
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Overall length in3-5/32
Shank diameter0.3230
Square size0.2420
Thread directionRight Hand
Thread length in1-7/16
Thread limitH5
Thread size in7/16-14
Thread standardUNC
