Regal Cutting Tools
3/8-16 UNC High-Speed Steel Spiral Point Tap - Regal Cutting Tools 017174AS
MFR# 017174AS
$23.11List $29.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
Description

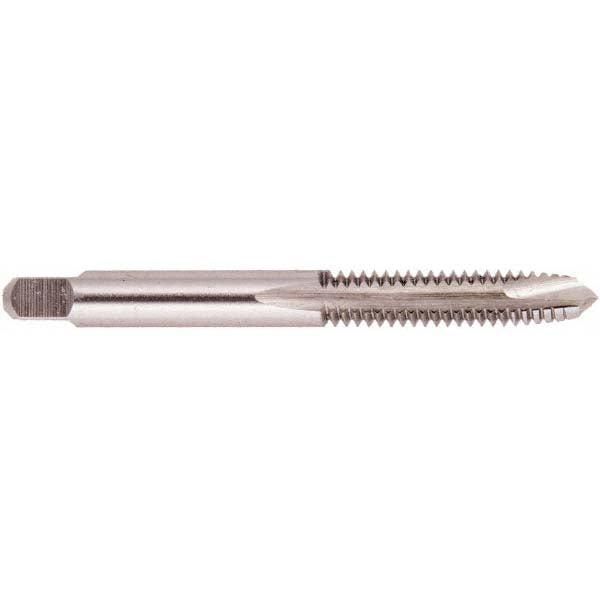

The Regal Cutting Tools 017174AS is a 3/8-16 UNC High-Speed Steel Spiral Point tap. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Aluminum; Cast (Sand) Aluminum; Cast Iron; Die Cast Aluminum; Free-Machining Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Nickel Alloy; Precipitation-Hardened Stainless Steel; Stainless Steel; Wrought Aluminum
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
StyleSpiral Point
Thread directionLeft Hand
Thread length in1-1/4
Thread limitH3
Thread size in3/8-16
Thread standardUNC
