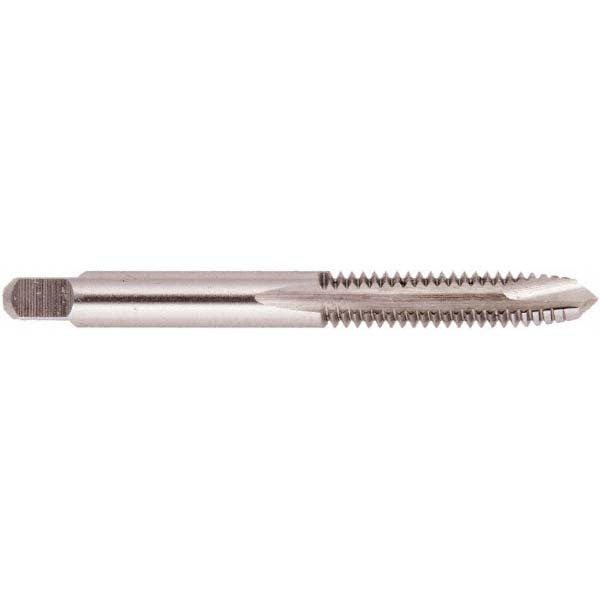

#4-40 UNC Solid Carbide Spiral Point Tap - Regal Cutting Tools 018192RS
MFR# 018192RS
$96.41List $123.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
Description
The Regal Cutting Tools 018192RS is a #4-40 UNC Solid Carbide Spiral Point tap. 2 flutes.
Specifications
ChamferPlug
Class of fit2B
Coolant throughNo
MaterialSolid Carbide
Material applicationAluminum; Austenitic Stainless Steel; Cast (Sand) Aluminum; Cast Iron; Die Casting Aluminum; Wrought Aluminum
Number of flutes2
Overall length in1-7/8
OversizeNo
Shank diameter0.1410
StyleSpiral Point
Threads per inch40
Thread directionRight Hand
Thread length in9/16
Thread limitH2
Thread size in#4-40
Thread standardUNC
