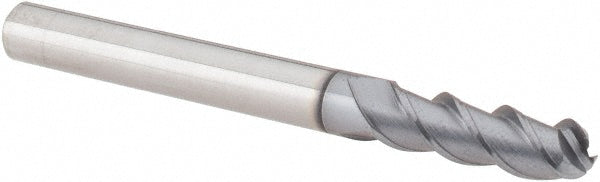

3/16in" 3-Flute Solid Carbide Ball End Mill, AlTiN - Regal Cutting Tools 090221RM

Regal Cutting Tools

3/16in" 3-Flute Solid Carbide Ball End Mill, AlTiN - Regal Cutting Tools 090221RM

MFR# 090221RMSeries Triple Crown

$26.00List $33.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16in
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The Regal Cutting Tools 090221RM is a 3/16in 3-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. Suited for stainless steel. 5/8in length of cut, 2in overall length. Series Triple Crown.

Specifications

Additional informationExcellent Cutting Qualities On Stainless Steel, Aluminum And Copper. Increased Tool Life And Higher Cutting Accuracy
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Helix styleHigh
Length of cut in5/8in
Length typeLong
Manufacturers catalog number090221RM
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Neck length0.0000
Nose radius0.0938
Number of flutes3
Overall length in2in
Primary workpiece materialStainless Steel
Reach length0.6250
Shank diameter in3/16in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
