Rego-Fix
ER8 ER Collet Collet Chuck - Rego-Fix 2608.20850
MFR# 2608.20850
$190.73List $203.00
Save 6%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

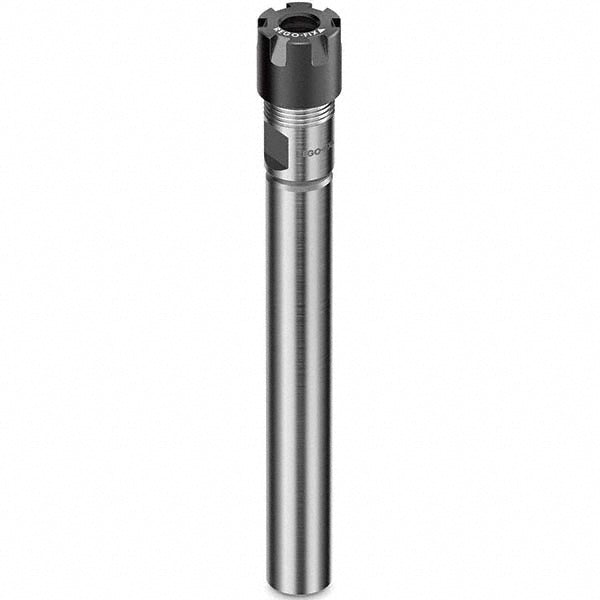

The Rego-Fix 2608.20850 is a ER8 ER Collet.
Specifications
Actuator typeWrench
Additional informationWith Hi-Q Nut
Collet nut diameter (mm)12.00
Collet seriesER8
Collet systemER
Coolant typeThrough-Spindle
Locknut diameter0.4728
Maximum collet capacity (mm)5.00
Minimum collet capacity in1/2
Overall length (mm)106.00
Projection (mm)80.00
Shank diameter (mm)8.00
Shank length (mm)80.00
Shank typeStraight
Through coolantYes
Tir0.000100
Tir mum3.00
TypeER Collet
