Riten

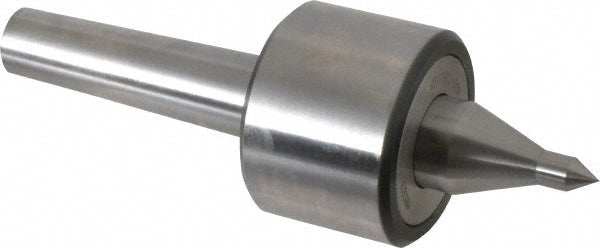

Lathe Center - Riten 48103
MFR# 48103
$517.82List $650.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Riten 48103 is a steel lathe center.
Specifications
Accuracy0in
Bearing typeDouble
Carbide tipped pointNo
FeaturesBody Heat-Treated For Additional Strength; Full-Length Spindle For Extra Rigidity; Long Point Configuration Allows For Tool Clearance; Points are Through-Hardened to 61-63 Rc; Two Angular Contact Bearings For Superior Performance In A Compact Design
Gage line clearance in1/4
Head diameter in2-3/8
Included angle60
Load capacity4480.00lb
MaterialSteel
Maximum rpm4000
Maximum workpiece weight lb885.00
Overall length7.0630
Point diameter in3/8
Point styleLong
Point to gauge line3.8750
Shank typeTaper
Taper sizeMT3
Tip length in5/8
