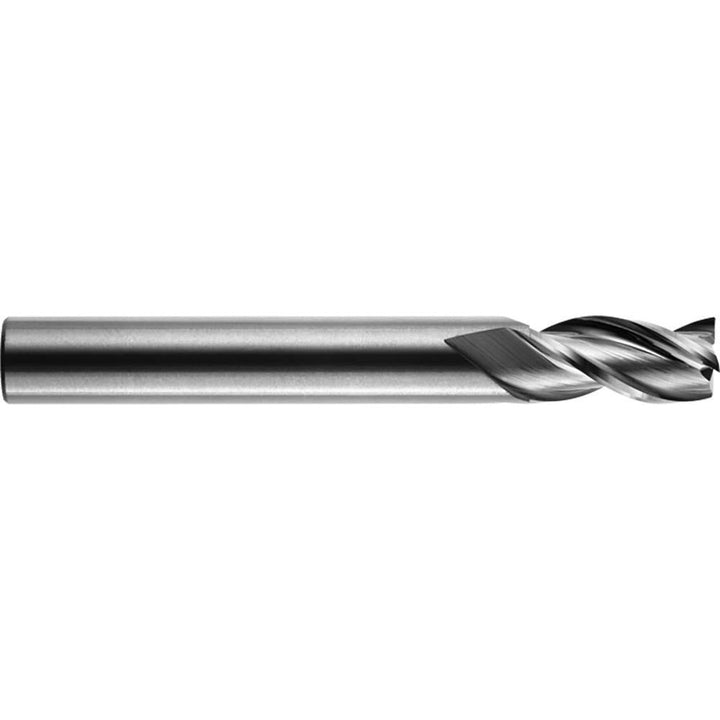

1/2" 3-Flute Solid Carbide Square End Mill - RobbJack A1-303-16

RobbJack

1/2" 3-Flute Solid Carbide Square End Mill - RobbJack A1-303-16

MFR# A1-303-16Series A1-303

$90.98List $99.40 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide

Description

The RobbJack A1-303-16 is a 1/2 3-flute Solid Carbide square end mill. 1-1/8 length of cut, 3 overall length. Series A1-303.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeStandard
Mill diameter in1/2
Mill diameter tolerance-0.001 to -0.0015 in
Number of flutes3
Overall length in3
Overall length tolerance+0.060/-0.060 in
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0002 in; -0.002/-0.005 mm
Shank typeStraight-Cylindrical
Tir maximum0.0005
Variable helixNo
Variable indexNo
