RobbJack

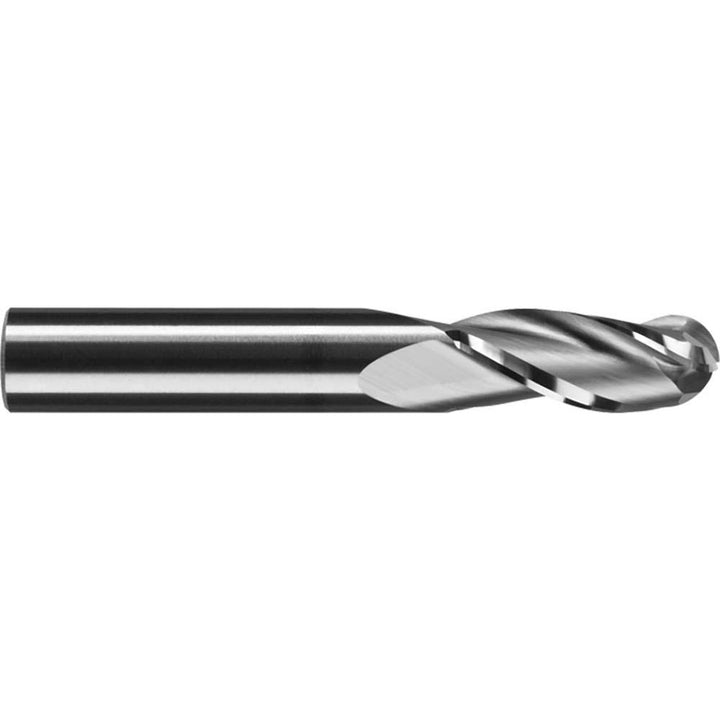

3/32in" 3-Flute Solid Carbide Ball End Mill - RobbJack B-333-03
MFR# B-333-03Series B-333
$34.11List $37.09
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/32in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The RobbJack B-333-03 is a 3/32in 3-flute Solid Carbide ball end mill. Suited for cast iron, non-ferrous metal. 3/8in length of cut, 1-1/2in overall length. Series B-333.
Specifications
Additional information3 Flute Ball End Standard Length Tuffy Grade Carbide End Mill
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/8in
Length typeStandard
Manufacturers catalog numberB-333-03
Material removal typeRoughing & Finishing
Mill diameter in3/32in
Mill diameter tolerance+0.0000/ 0.0020 in
Neck length0.0000
Nose radius0.0469
Number of flutes3
Overall length in1-1/2in
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialCast Iron; Non-Ferrous Metal
Reach length0.3750
Shank diameter in1/8in
Shank diameter tolerance0.0001/ 0.0002 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
