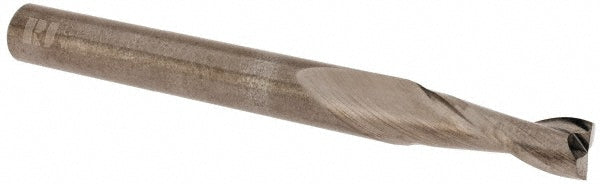

7/32" 2-Flute Solid Carbide Square End Mill - RobbJack C1-201-07

RobbJack

7/32" 2-Flute Solid Carbide Square End Mill - RobbJack C1-201-07

MFR# C1-201-07Series C1-201

$41.18List $44.77 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/32
Flutes2
MaterialSolid Carbide

Description

The RobbJack C1-201-07 is a 7/32 2-flute Solid Carbide (C2) square end mill. 5/8 length of cut, 2-1/2 overall length. Series C1-201.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeRegular
Material gradeC2
Mill diameter in7/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
