RobbJack

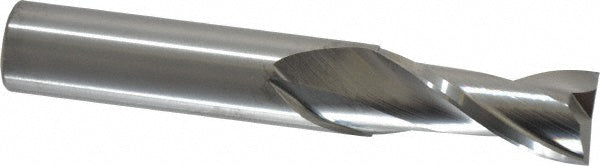

9/16" 2-Flute Solid Carbide Square End Mill - RobbJack C1-201-18
MFR# C1-201-18Series C1-201
$187.41List $204.75
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter9/16
Flutes2
MaterialSolid Carbide
Description
The RobbJack C1-201-18 is a 9/16 2-flute Solid Carbide (C2) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series C1-201.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length typeRegular
Material gradeC2
Mill diameter in9/16
Mill diameter tolerance+0.000/-0.003 in
Number of flutes2
Overall length in3-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in9/16
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
