RobbJack
3/4" 2-Flute Solid Carbide Square End Mill - RobbJack C1-201-24
MFR# C1-201-24Series C1-201
$318.66List $348.15
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes2
MaterialSolid Carbide
Description

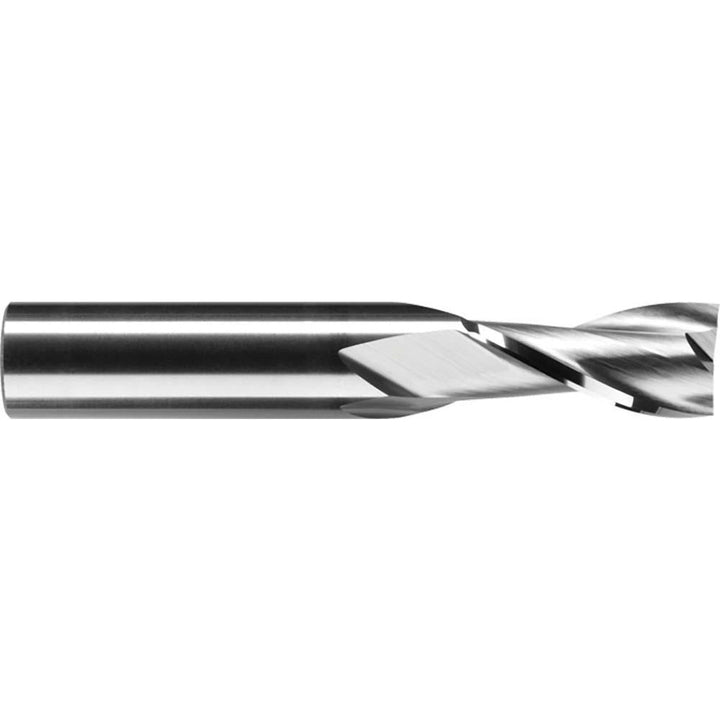

The RobbJack C1-201-24 is a 3/4 2-flute Solid Carbide (C2) square end mill. 1-1/2 length of cut, 4 overall length. Series C1-201.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length typeRegular
Material gradeC2
Mill diameter in3/4
Mill diameter tolerance+0.000/-0.003 in
Number of flutes2
Overall length in4
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/4
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
