3/4" 3-Flute Solid Carbide Square End Mill - RobbJack C1-301-24

RobbJack

3/4" 3-Flute Solid Carbide Square End Mill - RobbJack C1-301-24

MFR# C1-301-24Series C1-301

$318.65List $346.43 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes3
MaterialSolid Carbide

Description

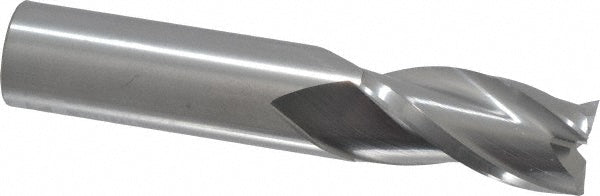

The RobbJack C1-301-24 is a 3/4 3-flute Solid Carbide (C2) square end mill. 1-1/2 length of cut, 4 overall length. Series C1-301.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length typeRegular
Material gradeC2
Mill diameter in3/4
Mill diameter tolerance+0.000/-0.003 in
Number of flutes3
Overall length in4
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/4
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS3/4" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 30846 $205.34 Kennametal3/4" 3-Flute Solid Carbide Square End Mill, TiAlN - Kennametal 6143977 $335.94 Seco0.75" 3-Flute Cobalt Roughing End Mill, TiCN - Seco 17013556 $90.45 Hertel3/4" 3-Flute Solid Carbide Square End Mill - Hertel 750015 $142.96
