RobbJack

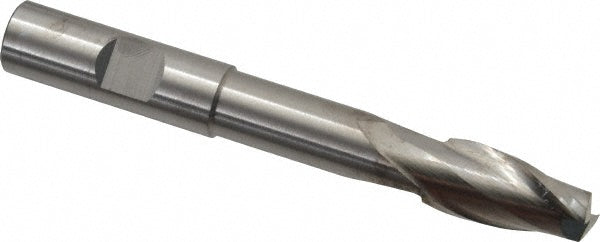

1/2" 2-Flute Solid Carbide Square End Mill - RobbJack EX-204-16
MFR# EX-204-16Series EX-204
$208.64List $227.95
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
Description
The RobbJack EX-204-16 is a 1/2 2-flute Solid Carbide square end mill. 1 length of cut, 4 overall length. Series EX-204.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length typeExtra Long
Mill diameter in1/2
Mill diameter tolerance+0.001/-0.000 in
Number of flutes2
Overall length in4
Overall length tolerance+0.060/-0.060 in
Reach length in2-1/2
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
