RobbJack

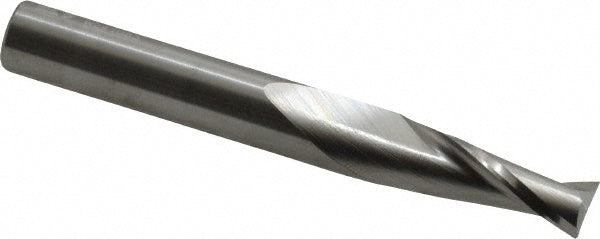

9/32" 2-Flute Solid Carbide Square End Mill - RobbJack NR-204-09
MFR# NR-204-09Series NR-204
$48.14List $52.34
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter9/32
Flutes2
MaterialSolid Carbide
Description
The RobbJack NR-204-09 is a 9/32 2-flute Solid Carbide (C2) square end mill. 3/4 length of cut, 2-1/2 overall length. Series NR-204.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeC2
Mill diameter in9/32
Mill diameter tolerance+0.001/-0.000 in
Number of flutes2
Overall length in2-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
