5/8" 2-Flute Solid Carbide Square End Mill - RobbJack NR-204-20

RobbJack

5/8" 2-Flute Solid Carbide Square End Mill - RobbJack NR-204-20

MFR# NR-204-20Series NR-204

$219.49List $238.63 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide

Description

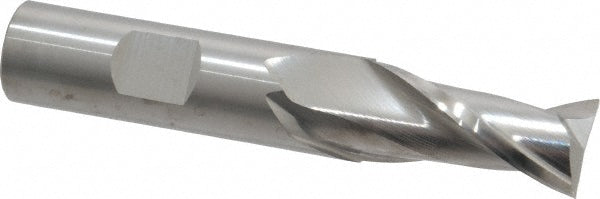

The RobbJack NR-204-20 is a 5/8 2-flute Solid Carbide (C2) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series NR-204.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length typeRegular
Material gradeC2
Mill diameter in5/8
Mill diameter tolerance+0.001/-0.000 in
Number of flutes2
Overall length in3-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
