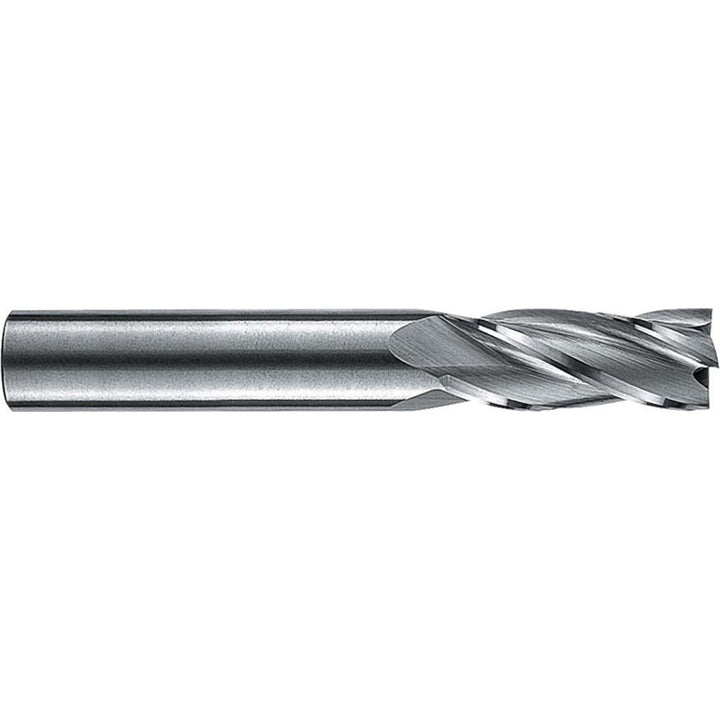

7/64" 4-Flute Solid Carbide Square End Mill - RobbJack NR-404-03.5

RobbJack

7/64" 4-Flute Solid Carbide Square End Mill - RobbJack NR-404-03.5

MFR# NR-404-03.5Series NR-404

$28.05List $30.45 Save 7%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/64
Flutes4
MaterialSolid Carbide

Description

The RobbJack NR-404-03.5 is a 7/64 4-flute Solid Carbide (C2) square end mill. 7/16 length of cut, 1-1/2 overall length. Series NR-404.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/16
Length typeRegular
Material gradeC2
Mill diameter in7/64
Mill diameter tolerance+0.001/-0.000 in
Number of flutes4
Overall length in1-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
