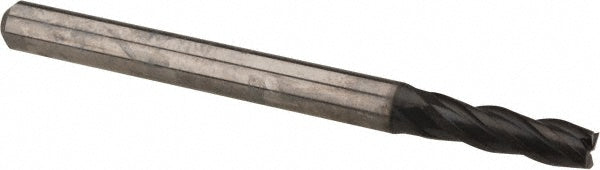

7/64" 4-Flute Solid Carbide Square End Mill - OSG 36040411

OSG

7/64" 4-Flute Solid Carbide Square End Mill - OSG 36040411

MFR# 36040411Series 3604

$28.96List $37.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/64
Flutes4
MaterialSolid Carbide

Description

The OSG 36040411 is a 7/64 4-flute Solid Carbide (Micrograin) square end mill. 3/8 length of cut, 1-1/2 overall length. Series 3604.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in7/64
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Titan USA7/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC99507 $14.75 SGS7/64" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39013 $15.91 Guhring7/64" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031530027800 $28.75 Hertel7/64" 4-Flute Solid Carbide Square End Mill, TiN - Hertel 750540 $15.71
