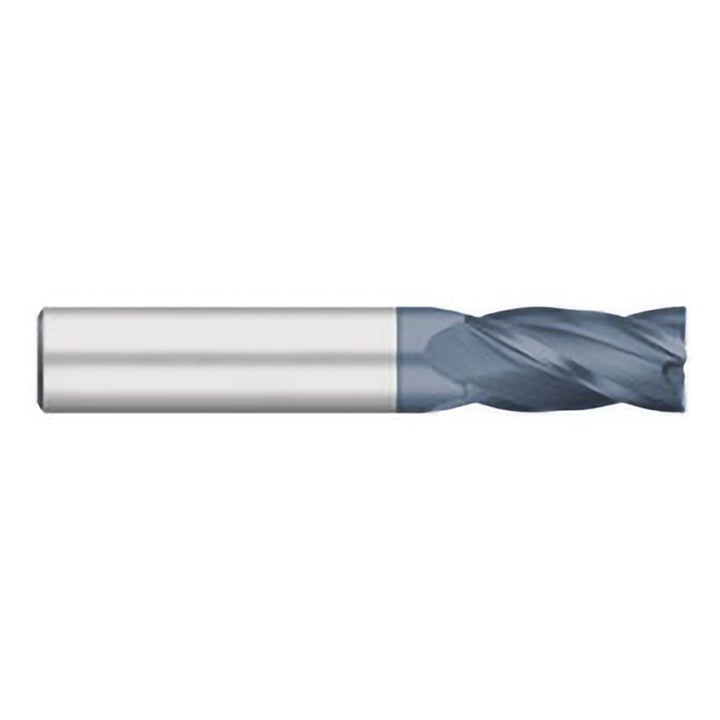

7/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC99507

Titan USA

7/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC99507

MFR# TC99507

$14.75List $18.92 Save 22%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/64
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Titan USA TC99507 is a 7/64 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 3/8 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Material gradeMicrograin
Mill diameter in7/64
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
